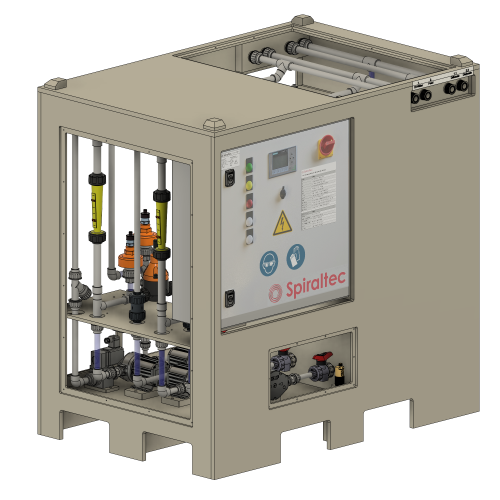

Supply Unit DDSU150

The supply unit of the DDSU150 series can be used in combination with the module-equipped boxes DS10-10 and DS20-10.

Description:
  • Automatic supply unit for the operation of up to three DS10-30 module systems or one DS20-S module system.

Technical data:
  • Dimensions: 1200 x 800 x 1200 mm (L x W x H)
  • Pump capacity: max. 200 l/h
  • Power supply: L1/N/PE AC 230 V 50 Hz
  • Operating pressure: max. 4,0 bar
  • Storage tanks: approx. 65 l per tank
  • Empty weight: approx. 220 kg

Advantages:
  • Integrated storage tanks
  • Optional safety filtration
  • Stackable with modular system DS10-30
  • Complete housing made of PP
