SPIRAL REDOX FLOW BATTERY

Spiral Energy Storage
German Innovation for Europe’s Energy Future

A compact, cylindrical energy storage system with an environmentally friendly electrolyte, designed to enable stable power distribution and high power density, while allowing cost-effective manufacturing and low operating costs.

Renewable energy is now the most cost-effective form of electricity generation — however, it is inherently intermittent. Solar power only generates electricity when the sun is shining, and wind turbines only produce energy when the wind is blowing. Without reliable large-scale energy storage, surplus renewable energy is wasted, power grids become unstable, and fossil-fuel backup power plants remain necessary.

Europe urgently needs a safer, lower-cost, and scalable solution for long-duration energy storage to reach the cenergy transition.

Current storage technologies have major limitations:

Lithium-Ionen Battery:

• Critical raw materials such as lithium, cobalt, nickel, and graphite are required, leading to geopolitical dependencies as well as significant environmental impact.

• Capacity loss over time.

• Temperature sensitivity and fire/explosion risk: expensive control and monitoring technologies are required; additional systems are needed to maintain stable operating temperatures.

Vanadium-Redox-Flow Battery:

• High manufacturing costs due to the chemically aggressive vanadium-based medium.

• The stacked graphite plates make the product heavy, bulky, and complex.

• Dependence on vanadium, a geopolitically highly concentrated raw material.

ADVANTAGES OF A RFB

Spiraltec GmbH has developed the Spiral-Wound Redox Flow Battery (SW-RFB)

— a next-generation energy storage system protected by European patent EP 3 900 095 B1.

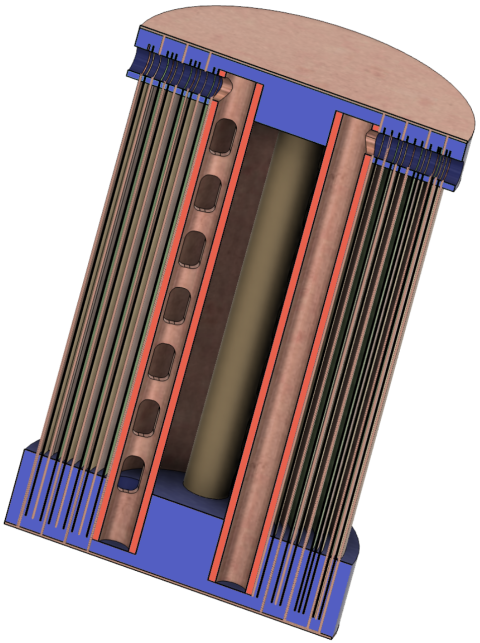

Instead of using hundreds of stacked graphite plates like conventional flow batteries, the SW-RFB uses a compact spiral-wound cylindrical design, based on Spiraltec’s proven industrial winding technology.

Lightweight electrode design

• Uses thin graphite-coated copper foils

• Reduces weight and material cost significantly

Permanent hermetic sealing

• Potting resin creates a maintenance-free seal

• Prevents leaks and long-term mechanical failure

Vanadium-free electrolyte

• Developed with Allegro Energy

• Non-hazardous and non-aggressive chemistry

• Compatible with low-cost materials

The SW-RFB is designed specifically for utility-scale, long-duration energy storage.

• Long operational life

• No lithium, cobalt, or vanadium

• No thermal runaway or fire risk

• Minimal degradation over time

• Fully modular and scalable to GW level

• Low maintenance requirements

• Recyclable and environmentally friendly

Unlike lithium-ion batteries, the SW-RFB separates energy capacity from power output. This means storage duration can be increased simply by adding more electrolyte — without redesigning the battery system.

The SW-RFB is more than a battery — it is a platform for enabling reliable renewable energy at scale.

By combining:

• safer chemistry,

• lower-cost materials,

• scalable modular design,

• and long operational life

The technology offers a realistic path toward affordable, long-duration energy storage for Germany, Europe, and global renewable grids.

Cooperation

Are you interested in further developing the product together with us

or testing our prototype RFB at your company?
