Non-Metal Spiral Heat Exchanger Technology

Building on many years of experience in developing and manufacturing spiral-wound membrane modules for diffusion dialysis, Spiraltec has developed an innovative non-metal spiral heat exchanger for applications requiring high chemical resistance, reliable heat transfer, and long-term operational stability.

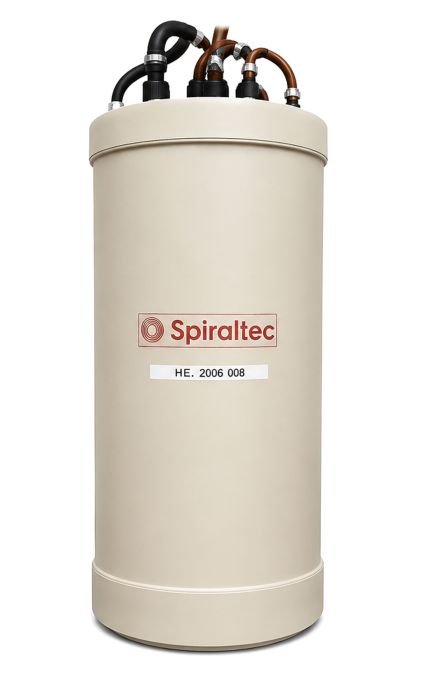

Manufactured from polypropylene (PP) components, including PP film and PP spacers, our Spiral Heat Exchanger provides excellent resistance to acids, bases, and saline solutions while offering a lightweight and cost-effective alternative to conventional metallic heat exchangers.

The unique spiral wound design with counter-current flow channels enables efficient heat transfer, uniform flow distribution, and compact construction. This allows the heat exchanger to meet a wide range of requirements in terms of flow rates, thermal performance, and chemical compatibility.

Overview Fields of application

Our Heat Exchanger is designed for industrial applications where corrosion resistance, chemical compatibility, and efficient thermal management are essential.

Electrochemical Processes

Temperature control of electrolyte solutions, such as electroplating baths, where reliable heat management and chemical resistance are critical. Combined with Spiraltec diffusion dialysis technology and conventional cooling systems, the heat exchanger enables cost-effective bath maintenance and improved process stability.

Chemical Process Engineering

Cooling and heating of aggressive process fluids, including acids, bases, and other corrosive media used in chemical manufacturing and surface treatment processes

Saline Water Applications

Efficient heating and cooling of saline fluids, including seawater and thermal water systems, enabling reliable operation without the limitations of metallic heat exchanger materials.

Water and Wastewater Treatment

Heat recovery and temperature control applications involving chemically challenging water streams.

Industrial Cooling and Heating Systems

Customized thermal management solutions for processes requiring corrosion-resistant and non-metallic heat exchange technology.

Engineered for the Highest Process Demands

Chemical Resistance

Excellent resistance to acids, alkalis, and other aggressive chemical media
Metal-free polypropylene (PP) construction for maximum chemical compatibility

Efficient Heat Transfer

Spiral-wound counter-current flow channels for highly efficient heat transfer
Uniform temperature distribution and excellent thermal performanc

Compact Efficiency

Spiral-wound counter-current flow channels for highly efficient heat transfer
Lightweight construction for space-saving installation and easy handling

Optimized Flow Distribution

Precisely engineered PP spacers ensure uniform flow distribution
Reduced fouling tendency through optimized channel geometry and smooth polymer surfaces

Reliable and Versatile

Electrically non-conductive construction for specialized applications
Ideal for corrosive and demanding process media

Tailored to Your Application

Custom-engineered designs optimized for performance, dimensions, and process requirements
Tailor-made solutions for a wide range of industrial applications

WHY COUNTER-CURRENT FLOW?

Our Heat Exchanger uses a counter-current flow configuration, where the hot and cold fluids flow in opposite directions. This arrangement maintains a high temperature difference between the two fluids along the entire heat exchanger length, resulting in more efficient heat transfer compared with parallel-flow designs.

Benefits of Counter-Current Flow:

  • Higher thermal efficiency
  • Improved heat recovery capability
  • Reduced energy consumption
  • More uniform outlet temperatures
  • Compact and high-performance design
  • Improved overall process efficiency

LABORATORY TESTING AND VALIDATION

Spiraltec applies comprehensive testing methods to evaluate and optimize heat exchanger performance under relevant operating conditions.

Testing capabilities include:

Thermal performance evaluation

Heat transfer efficiency measurements

Pressure drop characterization

Leak-tightness and integrity testing

Flow distribution analysis

Temperature cycling tests

Material compatibility assessment

Long-term performance evaluation

The results support continuous product optimization and provide confidence in reliable operation under demanding industrial conditions.

TYPES OF SPIRAL HEAT EXCHANGER SOLUTIONS

Spiraltec develops customized heat exchanger solutions according to specific application requirements.
Gas to liquid Heat Exchangers

Solutions for thermal exchange between gas and liquid streams in compact process systems.
Liquid-to-Liquid Heat Exchangers

Designed for efficient heating and cooling of liquids, particularly where corrosion resistance and chemical compatibility are required.
Custom Engineered Solutions

Tailored designs optimized for customer-specific requirements, including operating temperatures, flow conditions, and chemical environments.

PROOF OF CONCEPT AND PRODUCT DEVELOPMENT

Innovation at Spiraltec is supported by a structured development process combining engineering expertise, prototype manufacturing, and experimental validation.

This approach enables Spiraltec to transform innovative concepts into reliable industrial solutions while reducing development risks and accelerating product innovation.

Each new concept is evaluated through:

  • Engineering design and simulation
  • Laboratory testing
  • Leak-tightness verification
  • Thermal performance validation
  • Design optimization based on test results
  • Customer-specific performance evaluation

COOPERATION

Macdonald Nwamuo (R&D Engineer)

Would you like to test our HEX prototypes at your company or work with us to further develop the product?

We’d love to hear about your requirements and explore the possibilities together. Get in touch with us:
